The Calculators by Symmetry (CBS) API runs the same paycheck calculations as the hosted widgets, without the UI. Send a calculator request and receive the calculated withholding, deductions, and net pay as JSON. The endpoint reference in this section is generated from the CBS OpenAPI specification.
New to the calculators API? Start with Quickstart: Call the calculators API for a complete first request, then use this reference for full endpoint and schema details.

​
Environments and base URLs

Calculator endpoints sit under /calculators. For example, https://calculators.symmetry.com/api/calculators/salary. CBS runs across standard deployment tiers: local, test, staging, and prod. Production is the default target for the URLs above. If your integration needs a non-production tier, request the corresponding endpoint from Symmetry.
The CBS API Postman environment sets its endpointURL to the current deployment tier on import, so you can switch tiers without hand-editing each request. Set your apiKey in Postman after importing.
The hosted widget scripts load from a different host. See Widget catalog.

​
Authentication

Every request is authenticated with a single API key sent in the pcc-api-key header. There is no OAuth flow and no token exchange.
The widgets and the API use the same credential. See Authentication model for validation rules and optional domain restrictions.

​
Explore in Swagger

API clients can access our Swagger documentation to test and explore each endpoint, and see a comprehensive overview of all available features. Our Swagger docs are available for both our production and staging environments.

​
Authorize access to Swagger docs

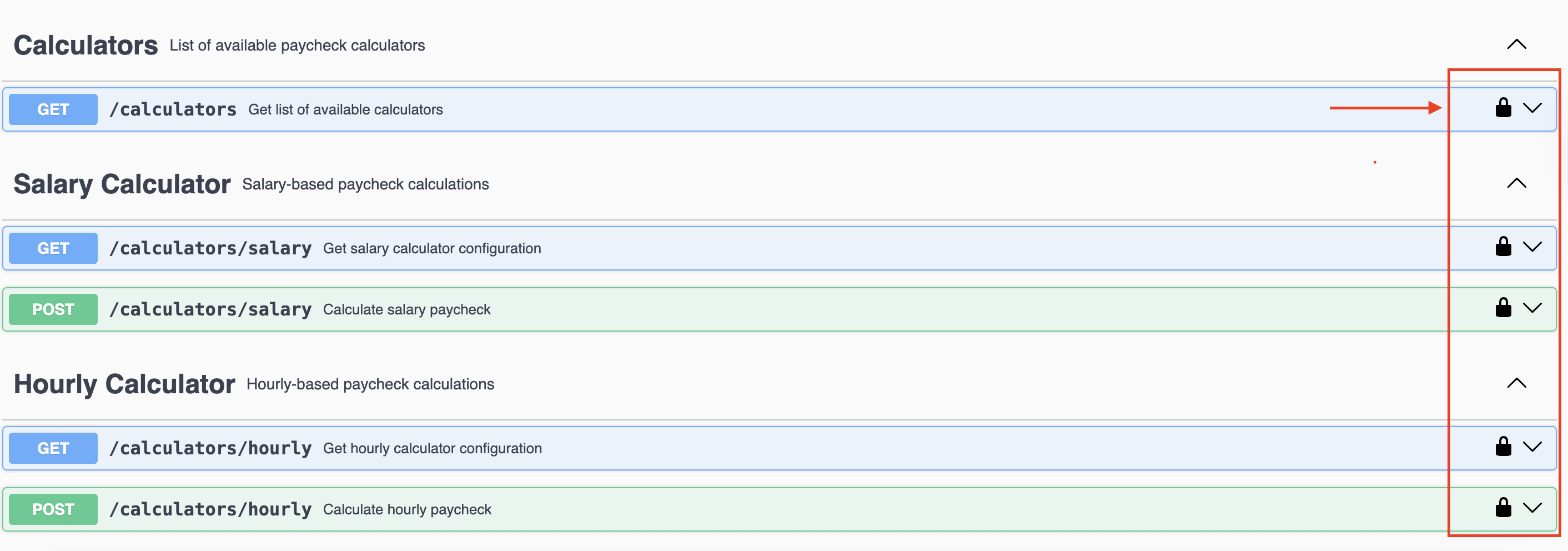

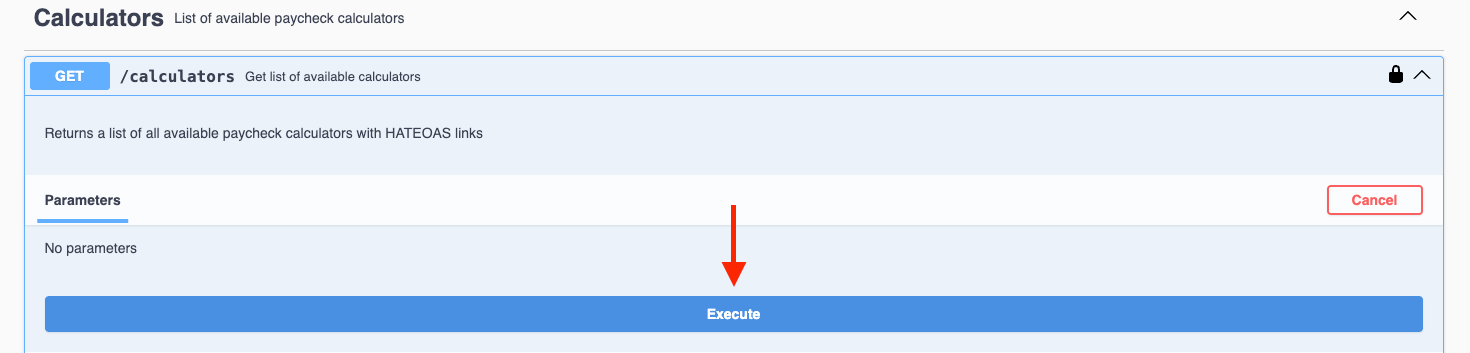

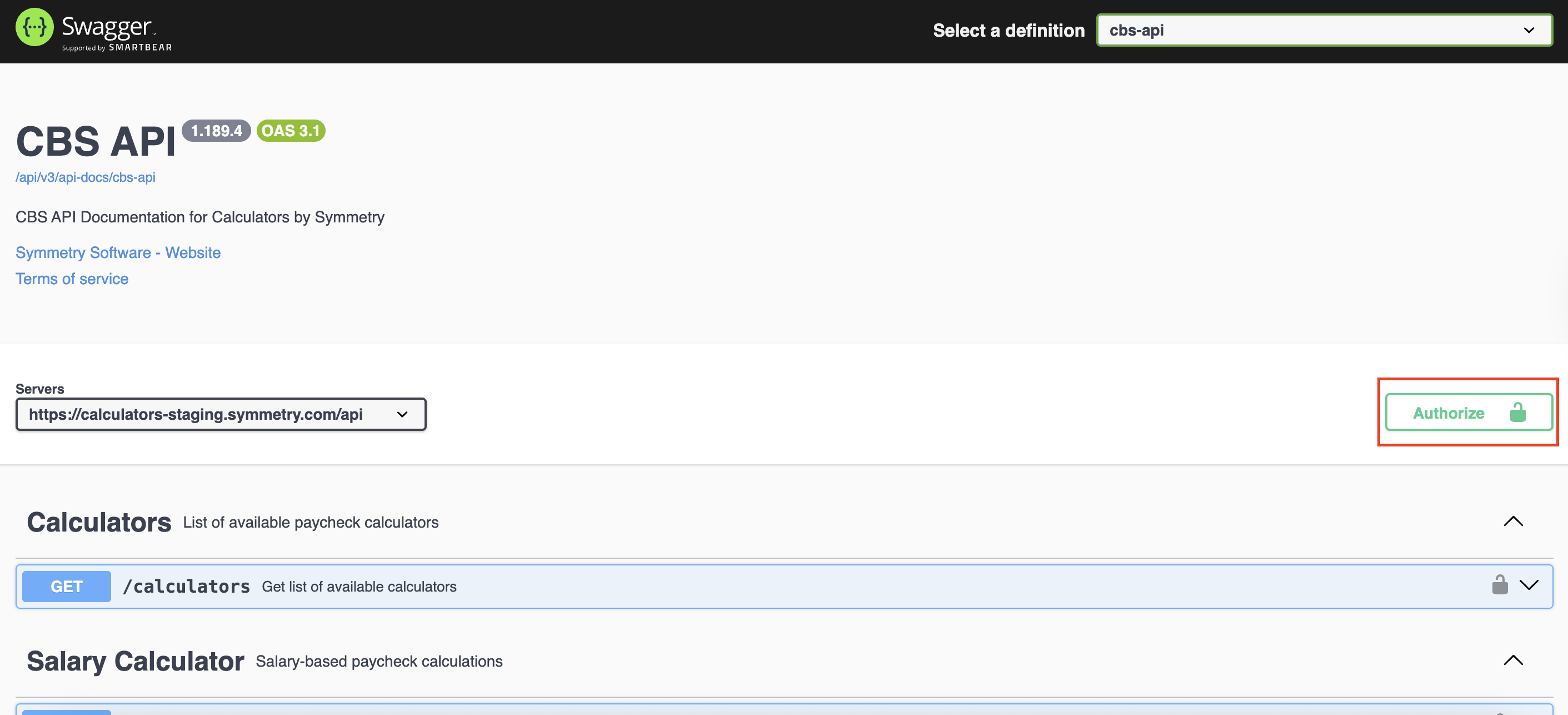

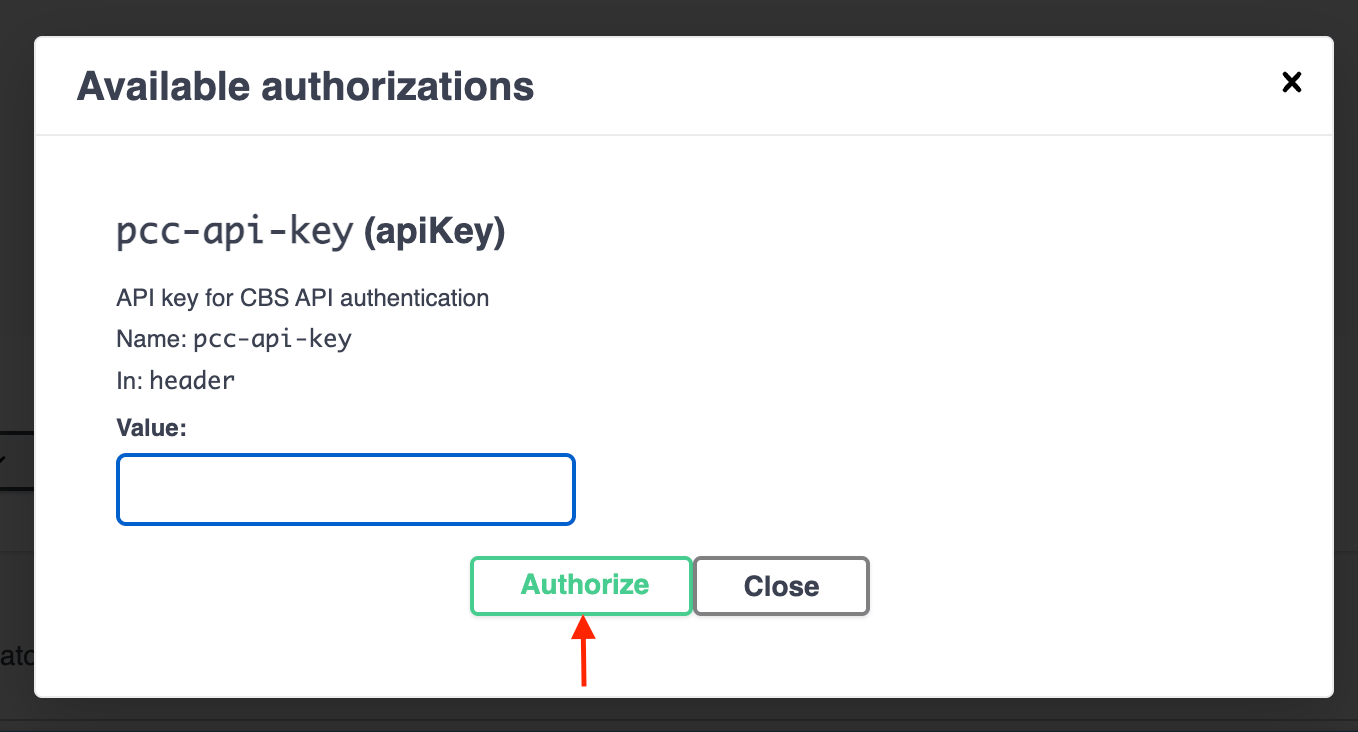

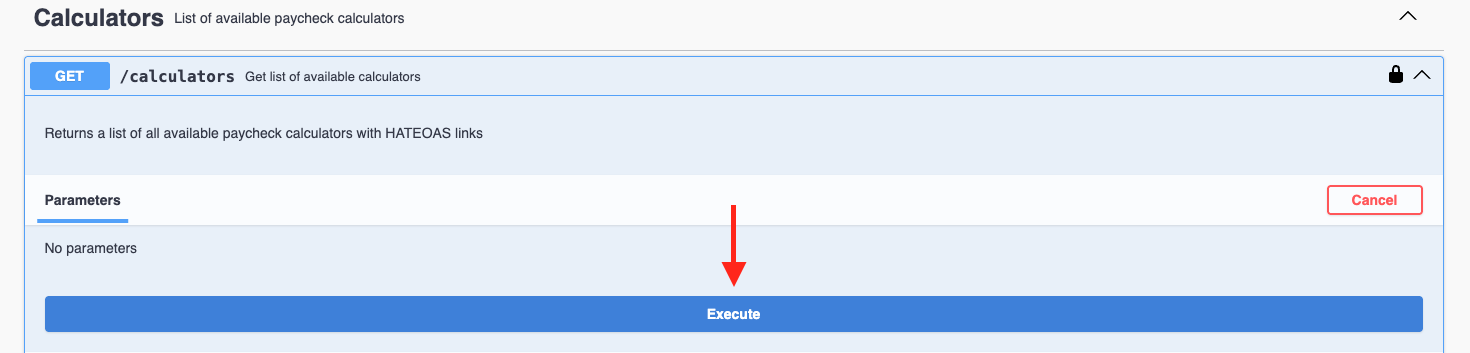

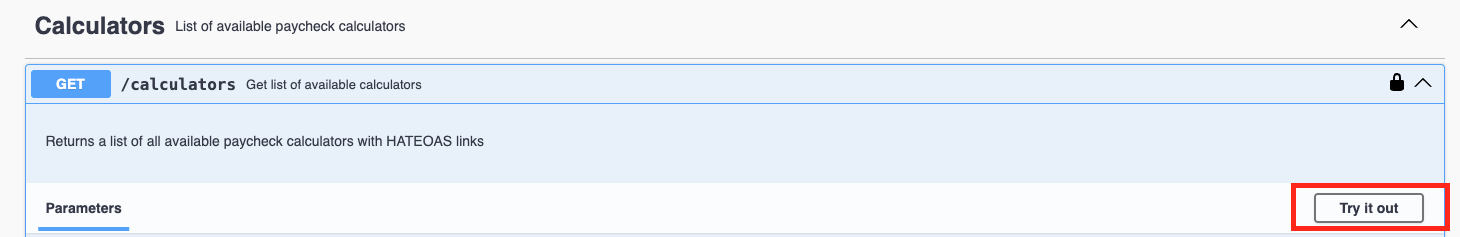

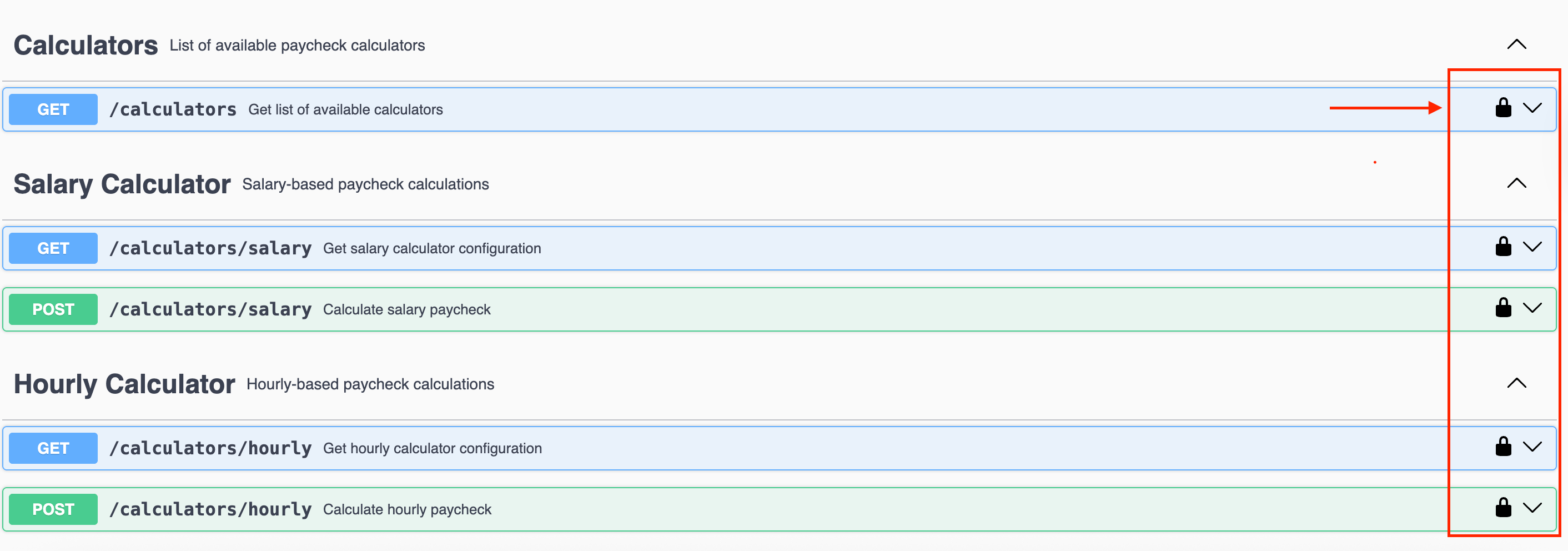

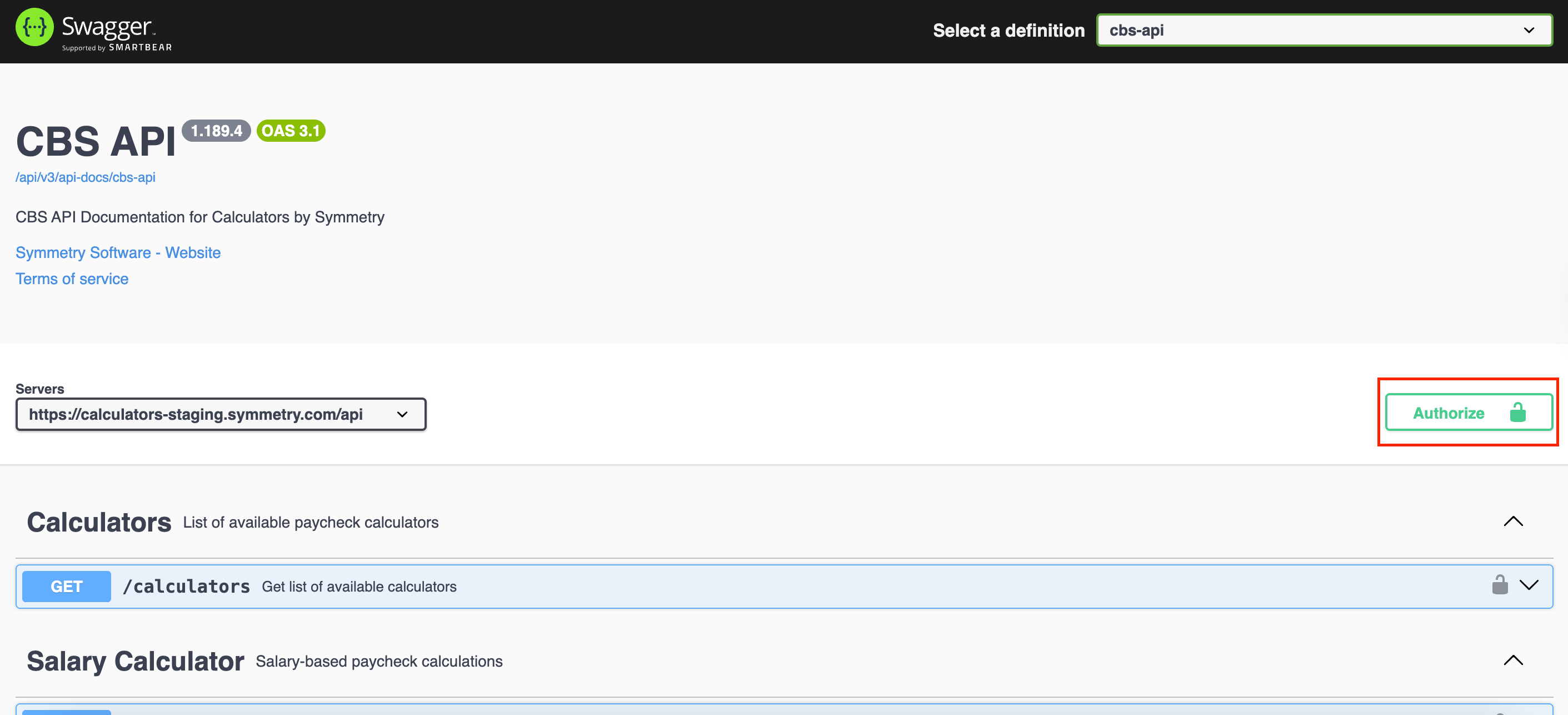

When accessing our Swagger docs, you will need to authorize to send a request to one of the CBS endpoints. To authorize, access the Swagger page and click the “Authorize” button to the right of the screen. Enter your API key and click “Authorize”. Authorize Button.png Available Authorizations.png Once authorized successfully, you’ll see the lock symbol go from gray to black on each of the endpoints. This is your indication that you can send the sample requests to each endpoint. Lock Symbol.png Click into the desired endpoint, select “try it out,” and then “execute.” Try it out.png Execute.png You’ll then receive the response from the endpoint.

​
OpenAPI specification

The CBS API serves its own specification at /docs/config. This endpoint requires no API key.
The endpoint pages in this section are generated from a committed snapshot of that specification.

​
Next steps

Postman collection

Download the CBS Postman collection and environment directly from the API.

Endpoints

Full reference for every calculator, data, print, and utility endpoint.
