The Symmetry Payroll Forms (SPF) API determines which withholding forms an employee must complete, serves the question sets that drive them, and returns completed PDFs and tax parameters. The endpoint reference in this section is generated from the SPF OpenAPI specification.
New to the SPF API? Start with the SPF API quickstart for a complete first request, then use this reference for full endpoint and schema details.

​
Environments and base URLs

The authentication endpoint sits outside the /spf base path used by every other endpoint. It’s https://api.symmetry.com/authentication/login (production) or https://api-staging.symmetry.com/authentication/login (staging). Don’t prepend /spf.

​
Authentication

Every SPF endpoint other than /authentication/login requires a JWT access token. Request one by calling the authentication endpoint with your API key, then send the token as a Bearer token in the Authorization header. See Authentication in SPF for the full header format and token lifetime.
Access token versus API keyYour access token is not the same as your API key. Your API key is used for initial authentication to obtain an access token from the /authentication/login endpoint. Your access token is used for authorization to access and interact with other SPF API endpoints securely.

​
Explore in Swagger

API clients can access our Swagger documentation to test and explore each endpoint, and see a comprehensive overview of all available features. Our Swagger docs are available for both our production and staging environments.

​
Authorize access to Swagger docs

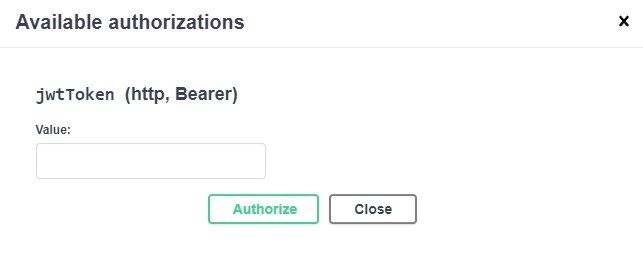

To generate the token, make a request to the /authentication/login endpoint to receive a valid access token. Then click the Authorize button on the right side of the browser, enter this access token into the dialog box for the respective environment, and click Authorize.

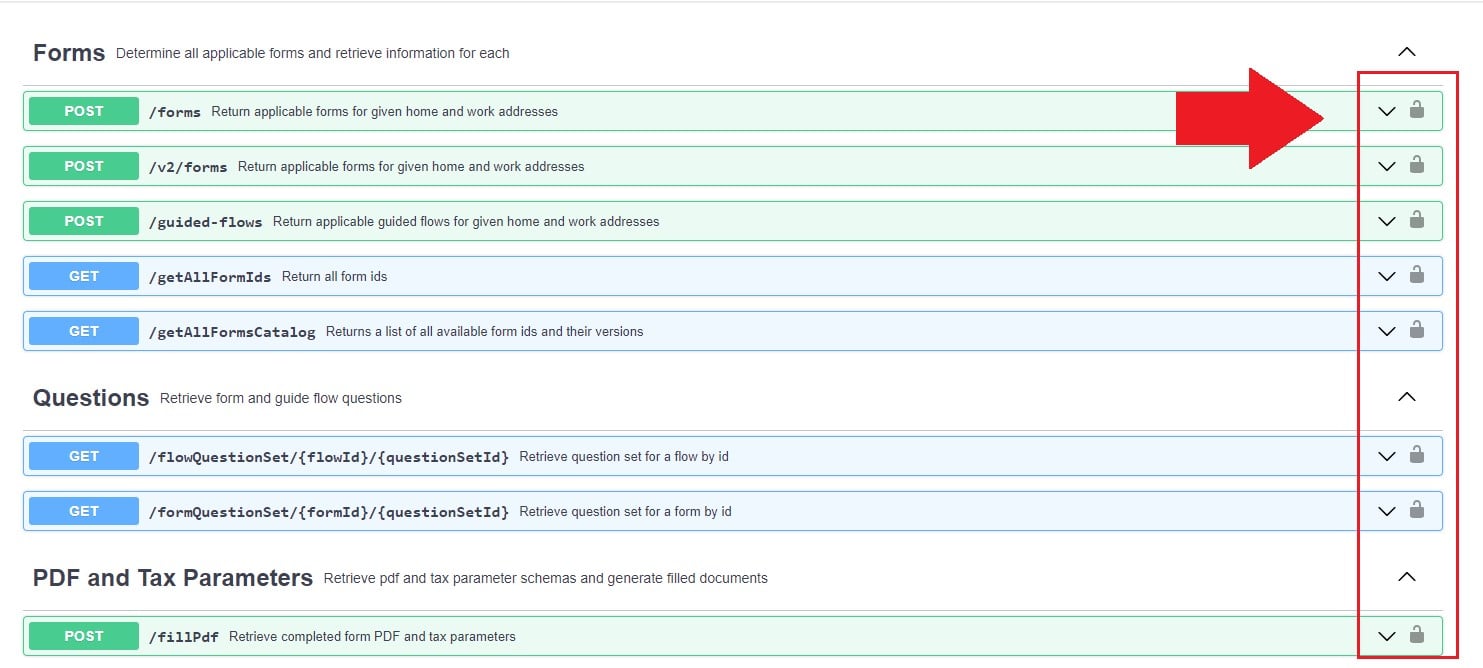

Once authorized successfully, you’ll see an unlocked symbol appear on each of the endpoints. This is your indication that you can send the sample requests to each endpoint.

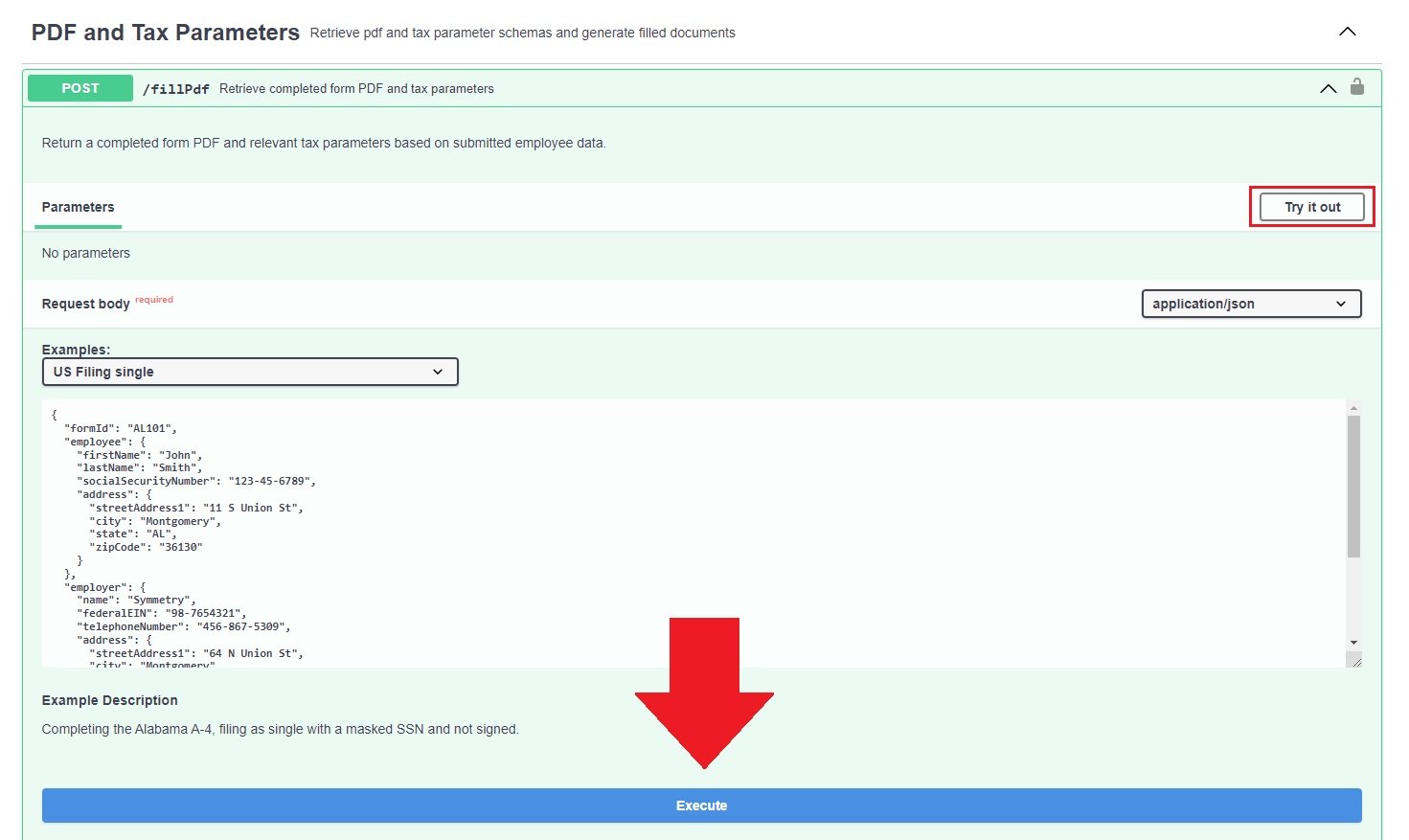

Click into the desired endpoint, select try it out, and then Execute.
You’ll then receive the response from the endpoint.

​
Next steps

Postman

Download the SPF Postman collection and environment directly from the API.

Endpoints

Full reference for every forms, questions, and PDF endpoint.
